To provide 0° and 90° reinforcement to your component we have two programs made for you in several fibers  like: Carbon, Aramid, Glass, Hybrids.

Besides the composite reinforcements, there are a lot of thermoplastic woven tapes for customer specific woven tapes.

The composite is program is split in 2 groups :

  • UD / Unidirectional tapes (reinforcement in warp/length direction)

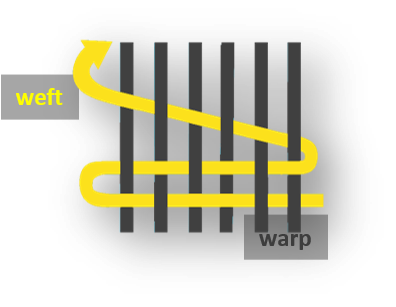

  • 0/90 woven tapes ( reinforcement in 0/warp and 90/weft degrees)

The woven tapes are available in several widths from 12,5mm to 120mm and can be delivered on rolls of 50 to 100 meters.

Thickness is calculated at 50% fiber volume fraction.

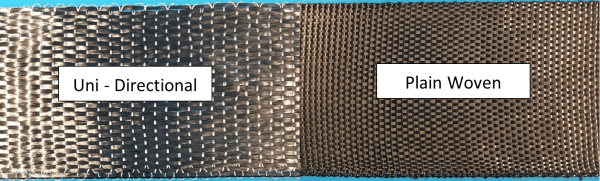

 UD and plain woven tape

Uni Directional tapes

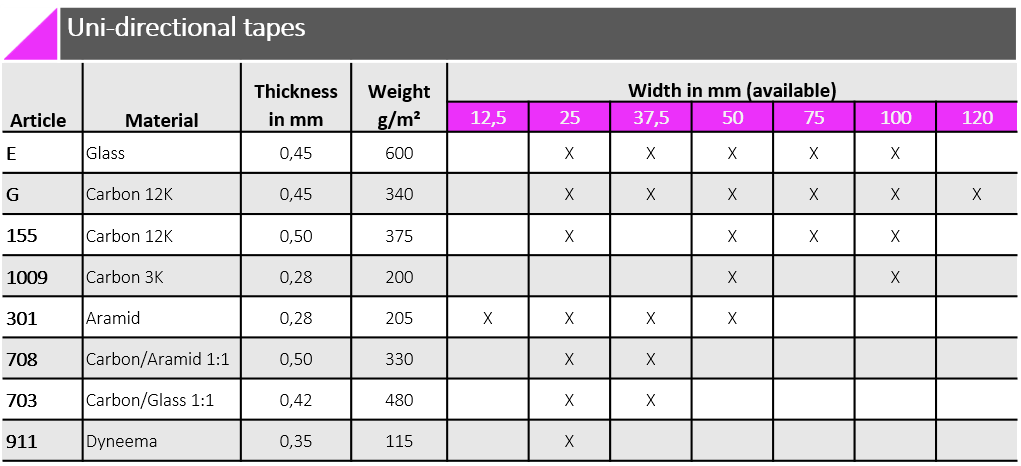

UD tape program

The available widths for each weave construction are marked with a “X” in the product list.

Other widths may be available, contact our sales department for more information.

The standard is a good way to start your engineering. Need something dedicated? See our Custom made Section.

Woven tapes

The available widths for each weave construction are marked with a “X” in the product list.

Other widths may be available, contact our sales department for more information.

The standard is a good way to start your engineering. Need something dedicated? See our Custom made Section.

NoPath

Standard Programs

To achieve a higher level of customer service, we have successfully implemented our standard product programmes for many years.

NoPath

Thermoplastics

Besides our selection of standard programs, Eurocarbon produces a large variety of tailor made constructions.

NoPath

Overbraiding & equipment

Overbraiding is the technique used to produce net shape cost-effective structural preforms.

Custom made woven tapes and braids

Custom made

We provide custom / tailor made solutions for our customers. Check the basic information required for a product proposal.

Would you like to get more information? Get in contact with one of our Agents!

Eurocarbon B.V.
