Flat braids are a single layer braid (non tubular), which have the same properties of excellent drape ability.

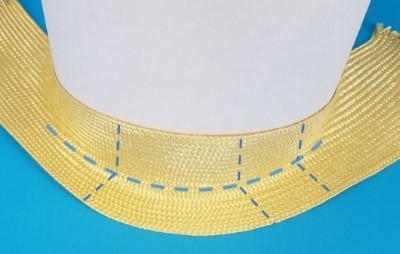

It is possible to form an “L” profile which is curved. This behavior makes it suited to reinforce radial pipe connections.

For sports the Aramid flat braid is commonly used to bond 2 canoe/kayak halves together. Then the ±45° fibers will both work, compared to a fabric, which has one functional 90°direction

Aramid fibers are very wear resistant and are temperature resistant up to 300°C.

There are 3 Aerial weight ranges ±300 g/m², the medium ±400 g/m² and heavy ±500 g/m² at width at 45 degrees.

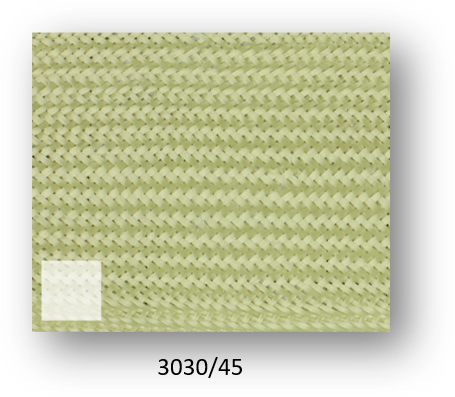

3031-60 Flatbraid

Standard Programs

To achieve a higher level of customer service, we have successfully implemented our standard product programmes for many years.



Besides our selection of standard programs, Eurocarbon produces a large variety of tailor made constructions.


Overbraiding & equipment

Overbraiding is the technique used to produce net shape cost-effective structural preforms.

Custom made woven tapes and braids

Custom made

We provide custom / tailor made solutions for our customers. Check the basic information required for a product proposal.
